Armor Rods

Armor Rods

PMI Armor Rods

Armor Rods for Maximum Subsea Cable Protection

Armor rods are ideal for the protection of submarine cables, hoses, and umbilicals used in a variety of oceanographic applications.
Features:

  • Easy wrap-on helical design allows installation at critical segments of the cable
  • Effective where chafing, abrasion, clamping, and bending may be present
  • Multiple layers provide controlled bending stiffness and increased bend protection
  • Mid-span applicable, access to cable end is not required

Product Description

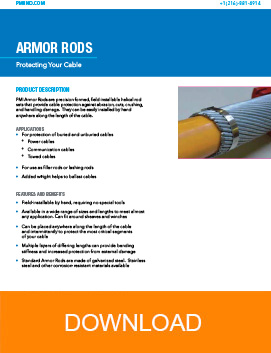

PMI Armor Rods are precision formed, field installable helical rod sets that provide cable protection against abrasion, cuts, crushing and handling damage. They can be easily installed by hand anywhere along the length of the cable.

Applications

  • For protection of buried and unburied cables
    • Power cables
    • Communication cables
    • Towed cables
  • For use as filler rods or lashing rods
  • Used by Oil & Gas industry, Renewables, Military, and Oceanographic industry customers
  • Added wright helps to ballast cables

Features and Benefits

  • Field installable by hand, requiring no special tools
  • Available in a wide range of sizes and lengths to meet almost any application, can fit around sheaves and winches
  • Can be placed anywhere along the length of the cable and intermittently to protect the most critical segments of your cable
  • Multiple layers of differing lengths can provide bending stiffness and increased protection from external damage
  • Standard Armor Rods are made of galvanized steel. Stainless steel and other corrosion resistant materials available
PMI_umbilical-with-rods
PMI Umbilical

Armor Rods

Armor Rods are built to close tolerances. To ensure satisfactory results, specify

  • Cable or rope diameter
  • Lay direction of outer strength member
  • Length requirements

PMI Armor Rods

A partial list of Armor Rods are shown in the table. For diameters and length options, and for use on jacketed and synthetic cables, please contact PMI.

PMI P/N CABLE RANGE (MIN - MAX) OVERALL LENGTH LAY DIRECTION
9100010 18.9 - 20.3 mm (0.744 - 0.801") 7.3 M (288") LHL
9009458 19.9 - 21.4 mm (0.783 - 0.844") 2.2 M (85") LHL
9100228 20.7 - 22.2 mm (0.813 - 0.874") 2.3 M (90") LHL
9100006 26.6 - 28.7 mm (1.048 - 1.128") 2.4 M (96") LHL
9009019 33.8 - 36.3 mm (1.330 - 1.428") 3.0 M (119") RHL
9007422 36.1 - 38.6 mm (1.420 - 1.520") 7.5 M (297") LHL
9007752 52.6 - 56.7 mm (2.071 - 2.231") 3.2 M (126") LHL
9006674 62.9 - 67.7 mm (2.476 - 2.667") 7.5 M (297") LHL
9007753 64.4 - 69.4 mm (2.536 - 2.731") 2.9 M (116") LHL
9008733 65.2 - 70.2 mm (2.568 - 2.765") 3.4 M (135") LHL
9009464 65.8 - 70.9 mm (2.590 - 2.790") 6.0 M (236") LHL
9008969 68.9 - 74.2 mm (2.714 - 2.923") 1.6 M (64") LHL
9100009 68.9 - 74.2 mm (2.714 - 2.923") 4.2 M (165") LHL
9009018 70.2 - 75.3 mm (2.762 - 2.965") 3.0 M (119") RHL
9100008 103.8 - 111.8 mm (4.086 - 4.400") 4.6 M (182") RHL

Learn More


Schedule a consultation to learn more about PMI Armor Rods.

SPEAK TO A REPRESENTATIVE
