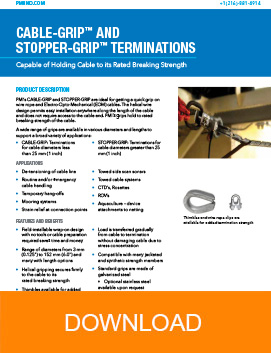

CABLE-GRIP™ and STOPPER-GRIP™ Terminations

CABLE-GRIP™ and STOPPER-GRIP™ Terminations

PMI Cable Grip

End Cable Problems with CABLE-GRIP and STOPPER-GRIP Terminations

CABLE-GRIP terminations are for cable diameters less than 1.0” and STOPPER-GRIP terminations are for cable diameters 1.0” and over. PMI grips are fully capable of holding your cable to the rated breaking strength. The helical wire design permits easy installation anywhere along the length of the cable and does not require access to the cable end. The complete cable passes through the termination intact. Tensile load transfers gradually from cable to termination with no stress concentration to damage your cable.
Features:

  • Field installable wrap-on design
  • No tools or cable preparation is required
  • Sizes .125″ (3mm) and up
  • Standard grips furnished in galvanized steel; Other materials (stainless steel, etc.) available upon request
  • Compatible with many jacketed and synthetic strength members
  • Thimbles available upon request

Product Description

PMI’s CABLE-GRIP and STOPPER-GRIPs are ideal for getting a quick grip on wire rope and Electro-Opto-Mechanical (EOM) cables. The helical wire design permits easy installation anywhere along the length of the cable and does not require access to the cable end. PMI Grips hold to rated breaking strength of the cable.

A wide range of grips are available in various diameters and lengths to support a broad variety of applications:

  • CABLE-GRIP: Terminations for cable diameters less than 25 mm (1 inch)
  • STOPPER-GRIP: Terminations for cable diameters greater than 25 mm (1 inch)

Applications

  • De-tensioning of cable line
  • Routine and/or Emergency cable handling
  • Temporary hang-offs
  • Mooring systems
  • Strain relief at connection points
  • Towed side scan sonars
  • Towed cable systems
  • CTD’s, Rosettes
  • ROV’s
  • Aquaculture – device attachments to netting

Features and Benefits

  • Field-installable wrap-on design with no tools or cable preparation required to save time and money
  • Range of diameters from 3 mm (0.125″) to 152 mm (6.0″) and many with length options
  • Helical gripping secures firmly to the cable to its rated breaking strength
  • Thimbles available for added termination strength
  • Load is transferred gradually from cable to termination without damaging cable due to stress concentration
  • Compatible with many jacketed and synthetic strength members
  • Standard grips are made of galvanized steel
    • Optional stainless steel, available upon request
    • Additional strain/bend relief protection to assist with minimizning kinking

CABLE-GRIP and STOPPER-GRIP Terminations

CABLE-GRIP and STOPPER-GRIP Terminations are built to close tolerances. To ensure satisfactory results, specify:

  • Cable or rope diameter
  • Lay direction of outer strength member
  • Rated breaking strength
  • Construction and/or type

STANDARD CABLE-GRIP TERMINATION for Diameters Under 25mm (1″): Other Sizes Available Upon Request

PMI # CABLE RANGE LENGTH LAY DIRECTION LOOP DIAMETER RHS*
9100037 6.0 - 6.5 mm (0.238 - 0.256") 673 mm (26.5") LHL 38 mm (1.50") 41.4 kN (9,300 lbf.)
9100038 7.7 - 8.3 mm (0.305 - 0.328") 838 mm (33.0") LHL 44 mm (1.75") 57.8 kN (13,000 lbf.)
9100043 7.9 - 8.5 mm (0.310 - 0.333") 673 mm (26.5") RHL 38 mm (1.50") 49.8 kN (11,200 lbf.)
9100062 8.9 - 9.6 mm (0.350 - 0.377") 940 mm (37.0") LHL 44 mm (1.75") 77.8 kN (17,500 lbf.)
9100046 10.3 - 11.0 mm (0.404 - 0.435") 940 mm (37.0") LHL 51 mm (2.00") 100.5 kN (22,600 lbf.)
9100031 10.8 - 11.6 mm (0.425 - 0.458") 889mm (35.0") RHL 51 mm (2.00") 93.4 kN (21,000 lbf.)
9100029 11.3 - 12.2 mm (0.446 - 0.481") 940 mm (37.0") LHL 51 mm (2.00") 100.5 kN (22,600 lbf.)
9100032 12.3 - 13.3 mm (0.486 - 0.523") 1257 mm (49.5") LHL 51 mm (2.00") 133.0 kN (29,900 lbf.)
9100023 15.4 - 16.6 mm (0.608 - 0.655") 1626 mm (64.0") LHL 64 mm (2.50") 201.5 kN (45,300 lbf.)
9100053 21.9 - 23.6 mm (0.864 - 0.931") 2121 mm (83.5") LHL 102 mm (4.00") 213.1 kN (47,900 lbf.)

STANDARD STOPPER-GRIP TERMINATION for Diameters 25mm (1″) and Over: Other Sizes Available Upon Request

PMI # CABLE RANGE LENGTH LAY DIRECTION LOOP DIAMETER RHS*
9009364 26.0 - 29.0 mm (1.020 - 1.140") 1753 mm (69") LHL 89 mm (3.50") 322.9 kN (72,600 lbf.)
9100208 27.3 - 29.4 mm (1.074 - 1.156") 2362 mm (93") LHL 89 mm (3.50") 266.4 kN (59,900 lbf.)
9100220 30.5 - 32.9 mm (1.201 - 1.294") 1892 mm (74.5") RHL 89 mm (3.50") 239.8 kN (53,900 lbf.)
9100205 33.0 - 35.5 mm (1.299 - 1.399") 2032 mm (80") LHL 102 mm (4.00") 282.0 kN (63,400 lbf.)
9100201 37.2 - 40.1 mm (1.464 - 1.577") 2261 mm (89") LHL 102 mm (4.00") 282.0 kN (63,400 lbf.)
9100219 42.2 - 45.4 mm (1.660 - 1.780") 2591 mm (102") RHL 102 mm (4.00") 484.4 kN (108,900 lbf.)
9100211 43.4 - 46.7 mm (1.708 - 1.840") 2616 mm (103") LHL 121 mm (4.75") 484.4 kN (108,900 lbf.)
9100210 45.9 - 49.4 mm (1.806 - 1.945") 2769 mm (109") LHL 140 mm (5.50") 524.4 kN (117,900 lbf.)
9100217 66.9 - 72.1 mm (2.630 - 2.830") 3327 mm (131") LHL 127 mm (5.00") 834.0 kN (187,500 lbf.)
9009333 64.1 - 68.1 mm (2.524 - 2.680") 4407 mm (173.5") LHL 140 mm (5.50”) 834.0 kN (187,500 lbf.)

*RHS = Calculated Rating Holding Strength on typical double-armored steel cable. Holding strength is dependent on cable construction.

Learn More


If you’d like to discuss our CABLE-GRIP or STOPPER-GRIP terminations, please schedule a consultation.
