Fiber Optic Splice Kit
Fiber Optic Splice Kit for Specialty Applications
The fiber optic splice kit enclosure family of products are designed to fill a specialized application need. They were originally created to help close the digital divide that rural communities face by splicing together miles of high-speed fiber-based broadband cables underwater.
Product Description

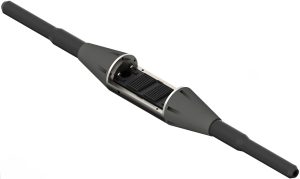

All fiber optic splice kits are designed for ease of installation anywhere along the cable to create a highly reliable, full ocean depth splice with multiple levels of sealing protection.
The splice kit contains:
- Room-temperature cure polyurethane
- Splice tray
- Precision precast compression dams
- EVERFLEXTM Bending Strain Relief or Armor Rods
- Split marine-grade, stainless steel enclosure (Titanium, stainless steel, and Delrin® enclosures available upon request)
Applications
Standard and customizable fiber optic splice for a variety of applications in any body of water (ocean, rivers, lakes, etc.)
Features and Benefits
- Standard and customizable fiber optic splice for a variety of applications.
- Paired with EVERFLEXTM Bending Strain Relief or Armor Rods for the perfect, optical/mechanical termination and to provide tailored bending and strain relief protection.
- Compression dams prevent leak water penetration along non-bondable surfaces.
- Fiber optics are spliced and set in 12-, 24-, or 48-capacity trays. (Other variations available upon request.).
- Polyurethane fill encapsulates the entire interior of the enclosure.
- Isostatic nature of the seal (same pressure exists on all sides of the seal) prevents water migration.
- Note: Special designs including cables with conductors are also available upon request.
Engineered & Tested To Customer Specifications
| DASH # | APPROXIMATE CABLE DIAMETER RANGE |
|---|---|
| 1 | 4.93mm - 6.20mm (0.194" - 0.244") |
| 2 | 6.22mm - 7.82mm (0.245" - 0.308") |
| 3 | 7.85mm - 9.86mm (0.309" - 0.388") |
| 4 | 9.88mm - 12.37mm (0.389" - 0.487") |
| 5 | 12.40mm - 15.52mm (0.488" - 0.611") |
| 6 | 15.54mm - 19.43mm (0.612" - 0.765") |
| 7 | 19.46mm - 24.31mm (0.766" - 0.957") |
| 8 | 24.33mm - 30.40mm (0.958" - 1.197") |
Ordering Example for .825″ Right Hand Lay Cable w/ Armor Rods
| 7- DASH # |
PB- KIT STYLE |
R LAY DIRECTION OF CABLE & RODS |
|---|---|---|
| 1-8 | PB = All poly BSR SB = BSR with stiffener rods AR = Armor rods |
Left, Right, or NA |
PMI Fiber Optic Splice Kit Enclosures
A partial list of fiber optic splice kits are shown in the table. For diameters and length options, and for use on fiber optic and conductor cables, please contact PMI.
