Independent Testing Services for Cable, Hardware and Devices

Our fully equipped facility offers testing services that can be uniquely tailored to meet your needs.

  • Evaluation, qualification, design verification and acceptance test programs
  • Continuous monitoring of power and signal conductors and optical fibers throughout testing
  • Certification and qualification to meet government, commercial, institutional and internationalstandards
  • Standardized test methods and test report format IAW ANSI Z39.18
  • Confidential results and on-site record retention

Ensure Survivability of Your System at Sea

PMI is capable and willing to take on new challenges to simulate service conditions experienced by underwater cable systems and devices. Our specialty is to provide insight with respect to the interaction between the strength member and attached hardware or the complete cable assembly. PMI will test all or any part of your project:

  • Raw Cable (Metallic and Synthetic Strength Members)
  • Rope and Hose Assemblies
  • Cable Assemblies, Cable Hardware, Terminations and More

Typical at-sea conditions can cause catastrophic failures to your system. Our facility can assist you to identify potential problems prior to use by performing extensive laboratory testing.

Tension

  • Break Strength
  • Test Load vs. Elongation Data
  • Proof Load Certification
  • Dynamic Load Simulation
  • Fatigue and Retirement Criteria
  • Cable Design Verification/Qualification
  • Certification of Cable Assemblies
  • Pre-tensioning of cable prior to terminating

Hydrostatic Pressure

  • Simulate At-Depth Pressure Loading
  • Verify Seal and Electrical and Optical Performance

Bending

  • Static and Dynamic Cable Qualification
  • Simulate Handling System Problems
  • Qualify Cable Fairing and Hardware
  • Verify Wet/Dry Fatigue Performance
  • Cable Jacket Abrasion Tests
  • Simulate Tow Point Dynamics
  • Fatigue Testing
  • Design Qualification

Measurement and Analysis

  • Tension vs. Torque
  • Tension vs. Rotation
  • Torque Balance verification
  • Cable Qualification
  • Verify “Non-Rotating”
  • Test for Twist Resistance
  • Torque Restraint Testing Verification
  • Monitoring & Measurement of Conductor and/or Optical Fiber Performance

Learn More:

Ask for a personal presentation Here

Receive the latest news Here

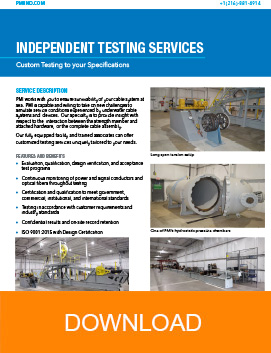

Download the PMI Testing Capability Sheet Here

Screen Shot 2014-09-21 at 7.20.26 PM

Our 100 kip tension test system includes MTS FlexTest® 40 controller with MTS TestSuite™ Multipurpose Elite software and integrated data acquisition. This enables us to easily create, edit and run complex tests with much greater flexibility than ever before as well as capturing the test data seamlessly. Test configurations can be saved and reused. It also provides real-time reporting so that at the completion of a test, the data can be plotted and reported immediately.

Screen Shot 2014-09-21 at 7.20.32 PM

Hydrostatic pressure cable testing simulates subsea Pressures to 10,000-psi.

Screen Shot 2014-09-21 at 7.20.38 PM
